USB 3.0 Hub with active repeater cable enables you to connect the HUB to a USB device up to 10m away. This HUB+Repeater Cable supports data transfer rates up to 5Gbps and is fully backward compatible with USB 2.0/1.1 devices.
Additional DC-Jack is designed for devices which need more power such as USB HDD and High power device, etc. Daisy Chain is available.
Patented locking design, assures firmly connections between our extension cables. |

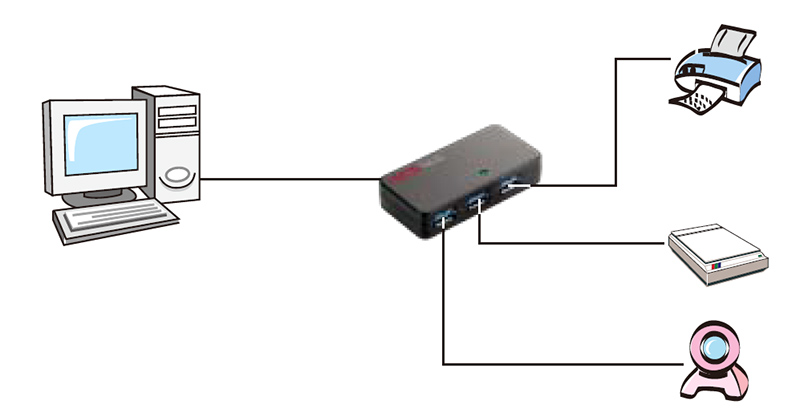

Applications
 |
| Model |
EXC-0302H |
| Features |
- 4 downstream USB 3.0 Port.
- USB 3.0 specifications, downwards compatible
- with USB 2.0/1.1 devices.
- Data transfer rates up to 5Gbps.
- Plug & Play, no driver required.
- USB bus power/DC self-power.
- Optional external power adapter required ( 5V/3.5A )
- for heavy power consumption device.
- Daisy-Chain Connection available.
- Over current detection and protection.
- Compatible with Win8/7/Vista/XP.
|
| Specifications |
- System requirements : USB 3.0 port
- Supported OS : Win8/7/vista/XP
- Interface :
- USB 3.0 downwards compatible with
- USB 2.0/1.1 X 4
- Connector :
- USB 3.0 A Male X 1
- USB 3.0 A Female X 4
- DC Power Jack X 1
- Max Data transfer rate :
- Cable Length :
- ousing dimension : 81mm * 40mm * 18.1mm
- Power Mode : USB bus-power/DC self-power
- Working environment :
- Operating Temp. 0°C ~ 50°C
- Storage Temp. - 40°C ~ 55°C
|
|
|
|
